Genius Retractable Motorized Screens with Insect Mesh - Models 6+ / 7+ Genius Retractable Motorized Screen Models - 6+ / 7+ create a comfortable outdoor living space while protecting against airborne insects and debris and will provide an unobstructed view when fully retracted. These screens are custom made to fit the opening dimensions provided and are pre-assembled for easy inside or outside mount installation.
Ordering Instructions: When ordering these screens, first determine the width and height of the opening area where the screen will be installed. Then determine the installation method preferred, proceed to "Choose Your Options" and place your order. These screens are custom made to fit the opening dimensions provided and are pre-assembled for easy inside or outside-mount installation.
Model 6+ 4.5" Cassette with Insect Screen Mesh 4.5" Cassette Min. Opening Width = 3' Wide - Max. Opening Width = 16.5' Wide 4.5" Cassette Min. Opening Height = 3' High - Max. Opening Height = 9' High
Model 7+ 5.5" Cassette with Insect Screen Mesh 5.5" Cassette Min. Opening Width = 3' Wide - Max. Opening Width = 20' Wide 5.5" Cassette Min. Opening Height = 3' High - Max. Opening Height = 12' High
Scroll to the bottom of this page to reference additional product details, measuring guides, installation instructions or to review the Genius Warranty.
Choose your options:
Select Aluminum Frame Color
Select Frame Color(required):
Select Installation Method
Installation Method(optional):

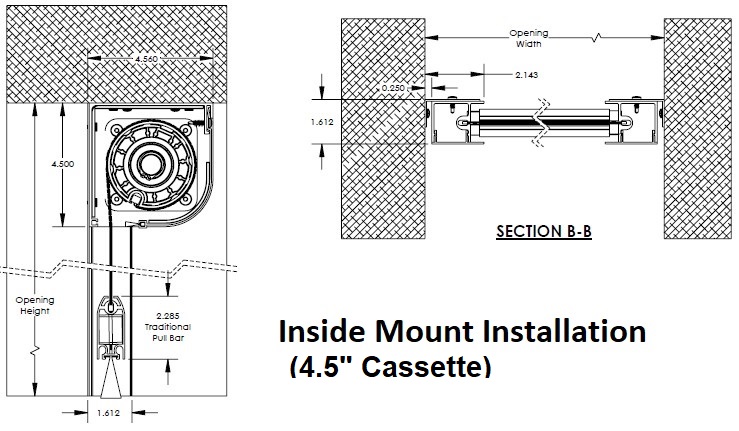

- Requires Inside Mount Angle Bracket Kits listed below. See Inside Mount Measuring Guide below the Description Area at the bottom of this page.

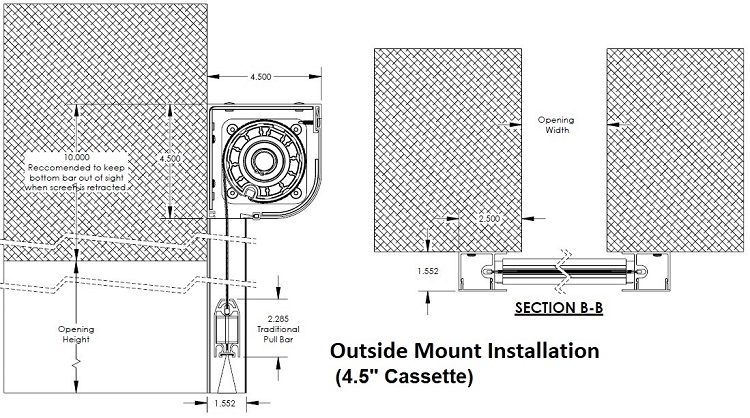

- See Outside Mount Measuring Guide below the Description Area at the bottom of this page
Opening Width
Opening Width(required):
Width Fraction
Width Fraction(required):
Opening Height
Enter Opening Height(required):
Height Fraction
Height Fraction(required):
Select Insect Screen Mesh From This List
Select Screen Mesh Fabric(required):
Order 6+ Screen Systems from this List
Order by Opening Size6+(required):
Order 7+ Screen Systems from this List
Order by Opening Size7+(required):
Select Motor Location
Select Motor Location(optional):
Order Hand Held Remote Controls from this List
Select Remote Controls(required):
Select Screen Control Options from this List
Select Screen Control Option(required):
Inside Mount Angle Bracket Kits
Inside Mount Bracket Kits(required):
Order Bottom Bar Seal Options from this List
(Order Bottom Bar Seals(required):
Optional Heavy Duty Bottom Bar Upgrade
Order Heavy Duty Bottom Bar(required):
Custom Made Screens
Custom Made Screens(required):
Genius Warranty / Care & Use Instructions
Warranty Information(required):
Additional Shipping Costs(required):
Product Code: GRMS-6-7
Usually Ships in 2 to 4 Weeks
Features:
These screens are custom made to fit the opening dimensions provided and are pre-assembled for easy inside or outside-mount installation. (See Measuring Guides, Installation Instructions and Genius Warranty Information listed below).
Insect Screens
Insect screens safeguard against airborne pests and are made of durable, vinyl-coated polyester that resists tears and punctures.
TuffScreen®
Protects against airborne pests.
TuffScreen® No-See-Ums Protects against even the smallest airborne pests with a tighter weave.
Model 6+
4.5" Cassette with Insect Screen Mesh Minimum Opening Width = 3' Wide - Maximum Opening Width = 16.5' Wide Minimum Opening Height = 3' High - Maximum Opening Height = 9' High
Model 7+ 5.5" Cassette with Insect Screen Mesh Minimum Opening Width = 3' Wide - Maximum Opening Width = 20' Wide Minimum Opening Height = 3' High - Maximum Opening Height = 12' High
Screen Controls Conveniently raise and lower the screen with the push of a button on the remote; or let the optional, automatic sun-wind sensor adjust the screen to match the weather.
Somfy® Remote Controls Simultaneously operate up to 16 screens with the push of a button.
•1 Channel controls 1 screen.
•5 Channel controls up to 5 screens or groups of screens.
•16 Channel controls up to 16 screens or groups of screens.
Somfy® Sun-Wind Sensor (Optional) Automatically lowers up to 16 screens during intense sunlight and raises them during heavy winds. Somfy® Sitruo Sun Sensor (Requires5 Channel Remote Control to activate Sun Sensor Option)
Heavy Duty Bottom Bar (Optional) Heavy Duty Bottom Bar can be added to Model 7+ Screen Systems for extra wind resistance.
